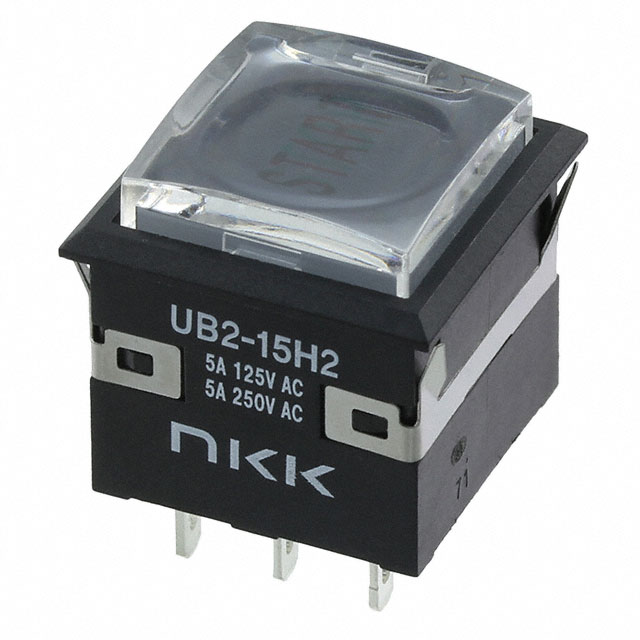

UB215KKW016CF-4JCF13
ActiveNKK Switches
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
UB215KKW016CF-4JCF13
ActiveNKK Switches
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UB215KKW016CF-4JCF13 |
|---|---|
| Actuator Marking | START/STOP (Alternating) |
| Actuator Type | Button, Alternating Legend, Square |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 5 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 2.1 VDC, 3.5 VDC |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 17.4 mm |
| Panel Cutout Dimensions [y] | 17.4 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UB215KKW016CF-4JCF13
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
