STA-6033Z
UnknownRFMD
IC AMP ISM 4.9GHZ-5.9GHZ 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STA-6033Z
UnknownRFMD
IC AMP ISM 4.9GHZ-5.9GHZ 16QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STA-6033Z |
|---|---|
| Current - Supply [Max] | 190 mA |
| Current - Supply [Min] | 130 mA |
| Frequency [Max] | 5.9 GHz |
| Frequency [Min] | 4.9 GHz |
| Gain [Max] | 28.5 dB |
| Gain [Min] | 22.5 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 5.7 dB |
| P1dB [Max] | 25.5 dBm |
| P1dB [Min] | 24 dBm |

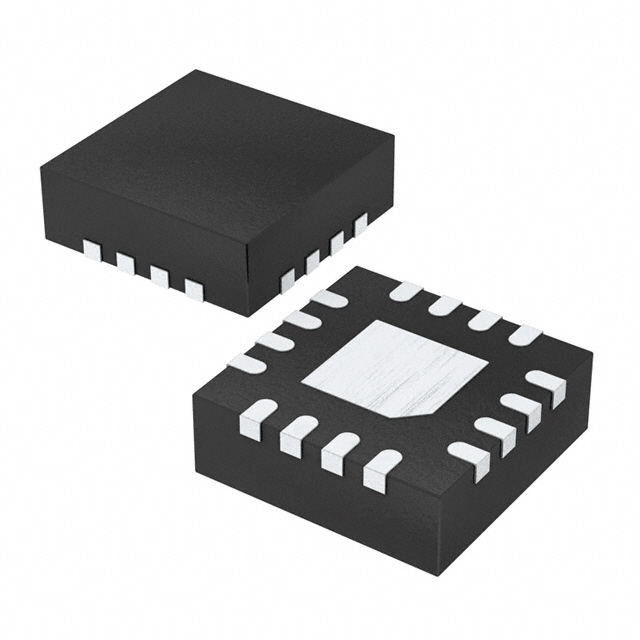

| Package / Case | 16-VFQFN Exposed Pad |
| RF Type | ISM, 802.16/WiMax, WLAN, 802.11a/WiFi |
| Supplier Device Package | 16-QFN (3x3) |
| Test Frequency | 5.875 GHz |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.20 | |
| 10 | $ 4.65 | |||
| 25 | $ 4.18 | |||
| 100 | $ 3.81 | |||
| 250 | $ 3.44 | |||
| 500 | $ 3.08 | |||
Description
General part information
STA-6033Z
RF Amplifier IC ISM, 802.11a/WiFi, WLAN, 802.16/WiMax 4.9GHz ~ 5.9GHz 16-QFN (3x3)
