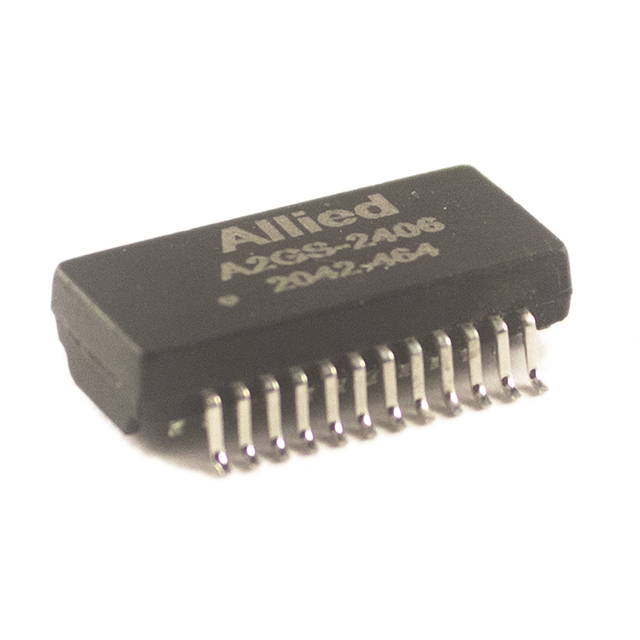

A2GS-2406
ActiveAllied Components International
2.5G BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A2GS-2406
ActiveAllied Components International
2.5G BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A2GS-2406 |
|---|---|
| Height - Seated (Max) | 4.25 mm |
| Height - Seated (Max) [Max] [z] | 0.167 in |
| Inductance | 150 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 0.606 " |
| Size / Dimension [x] | 15.4 mm |
| Size / Dimension [y] | 0.291 " |
| Size / Dimension [y] | 7.4 mm |
| Transformer Type | LAN 2.5G Base-T |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 6.50 | |
| 5 | $ 6.25 | |||
| 10 | $ 5.98 | |||
Description
General part information
A2GS-2406
150µH LAN 2.5G Base-T Pulse Transformer 1CT:1CT Surface Mount
