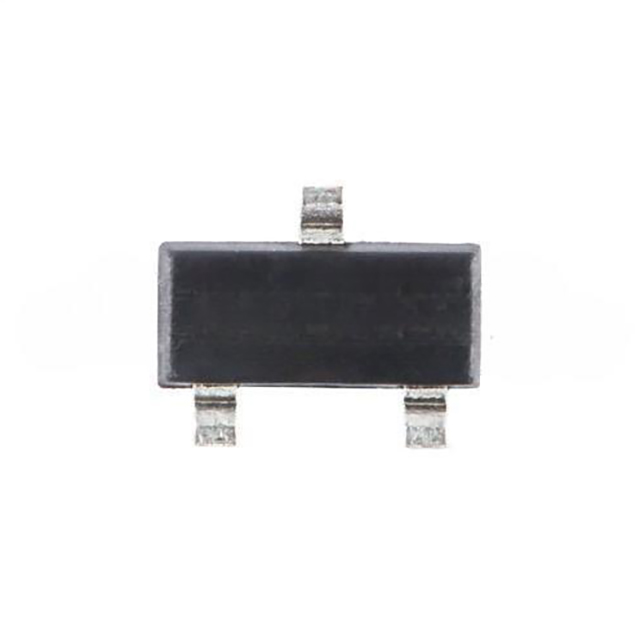

XC6206P282MR
ActiveUMW
40DB@(1KHZ) 100MA 240MV@(50MA) F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC6206P282MR
ActiveUMW
40DB@(1KHZ) 100MA 240MV@(50MA) F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC6206P282MR |
|---|---|
| Current - Output | 100 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Protection Features | Short Circuit, Over Current |
| PSRR | 40 dB |
| Supplier Device Package | SOT-23 |
| Voltage - Input (Max) [Max] | 8 V |
| Voltage - Output (Min/Fixed) | 2.8 V |
| Voltage Dropout (Max) [Max] | 0.24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.27 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.05 | |||
| 15000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.03 | |||
Description
General part information
XC6206P282MR
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
