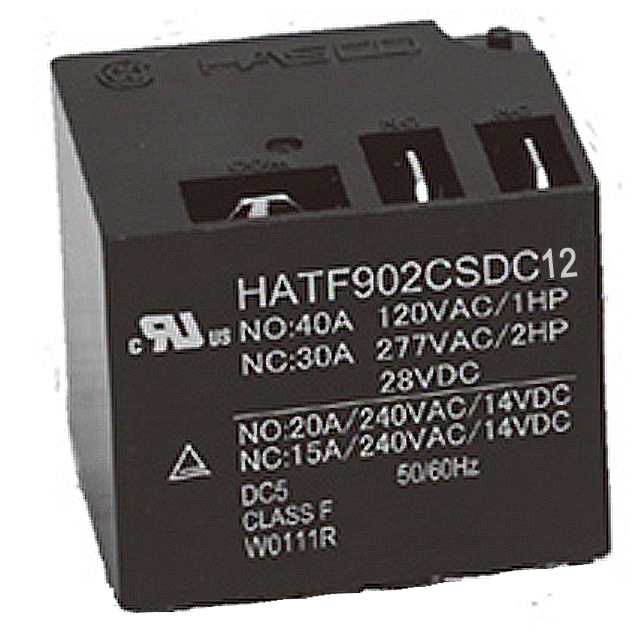

HAT902CSDC12
ActiveHasco Relays
RELAY SPDT 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
HAT902CSDC12
ActiveHasco Relays
RELAY SPDT 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HAT902CSDC12 |
|---|---|
| Coil Current | 77.4 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 30 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin, Quick Connect |
| Termination Style | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 2.05 | |
Description
General part information
HAT902CSDC12
Relay SPDT (1 Form C) 12VDC Coil Through Hole
Documents
Technical documentation and resources
