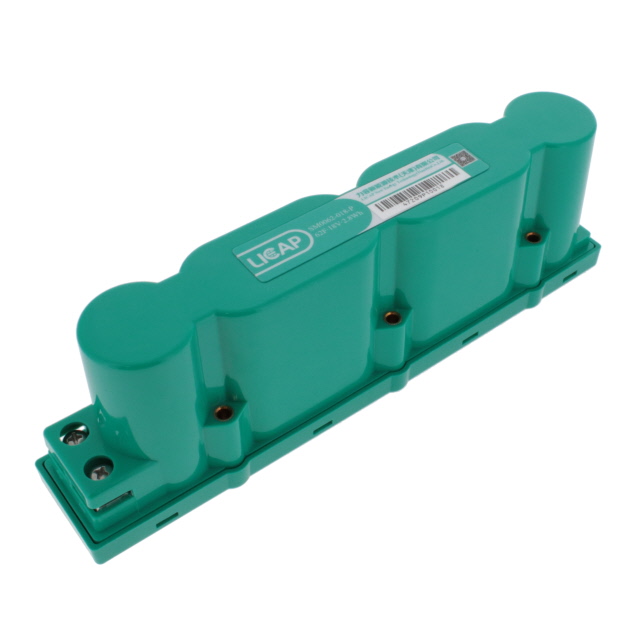

SM0062-018-P
ObsoleteLICAP Technologies, Inc.
CAPACITOR 62F 0%/20% 18V CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM0062-018-P
ObsoleteLICAP Technologies, Inc.
CAPACITOR 62F 0%/20% 18V CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM0062-018-P |
|---|---|
| Capacitance | 62 F |
| ESR (Equivalent Series Resistance) | 22 mOhms |
| Height - Seated (Max) [Max] [z] | 2.992 in |
| Height - Seated (Max) [Max] [z] | 76 mm |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 240 mm |
| Size / Dimension [x] | 9.449 " |
| Size / Dimension [y] | 1.85 " |
| Size / Dimension [y] | 47 mm |
| Termination | Screw Terminals |
| Tolerance [Max] | 20 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated [diameter] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SM0062-018-P
62 F (EDLC) Supercapacitor 18 V Module 22mOhm 1500 Hrs @ 65°C
Documents
Technical documentation and resources
