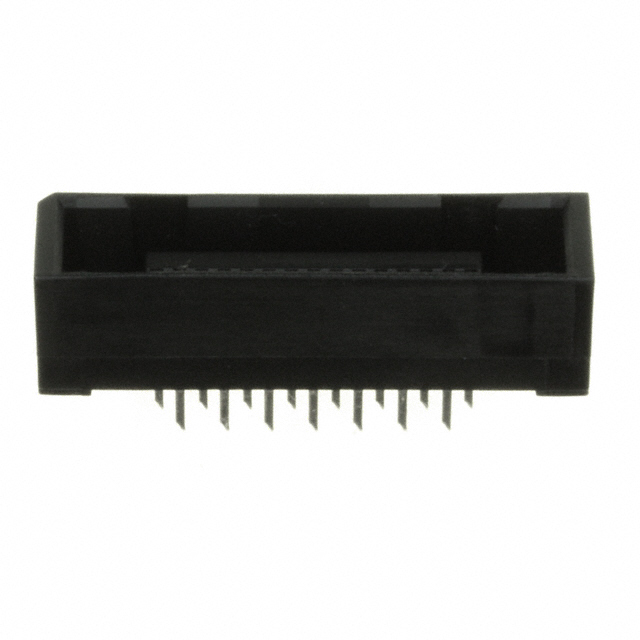

TX25-30P-6ST-N1E
ActiveJAE Electronics
CONN PLUG 30POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TX25-30P-6ST-N1E
ActiveJAE Electronics
CONN PLUG 30POS VERT GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25-30P-6ST-N1E |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board | 9.2 mm |
| Height Above Board | 0.362 in |
| Mated Stacking Heights | 16 mm, 12 mm, 18 mm |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.44 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 40 | $ 1.14 | |||
| 80 | $ 1.09 | |||
| 230 | $ 0.99 | |||
| 924 | $ 0.87 | |||
| 1848 | $ 0.74 | |||
| 2772 | $ 0.72 | |||
Description
General part information
TX25-30P-6ST-N1E
30 Position Connector Plug, Center Strip Contacts Through Hole Gold
