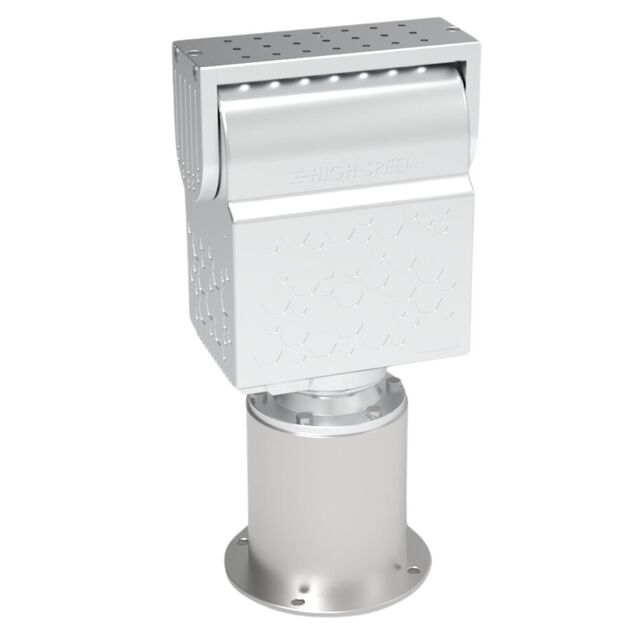

PANTILT4030HWS
ActiveVIETES
POSITION RESOLUTION 0.01, POSIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PANTILT4030HWS
ActiveVIETES
POSITION RESOLUTION 0.01, POSIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PANTILT4030HWS |
|---|---|
| Footprint [x] | 7.52 in |
| Footprint [x] | 191 mm |
| Footprint [y] | 4.724 in |
| Footprint [y] | 120 mm |
| Footprint [z] | 10.433 in |
| Footprint [z] | 265 mm |
| Maximum Payload [Max] | 30 kg |
| Number of Axes | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Type | Human Assist (Cobot) |
| Weight | 7 kg |
| Weight | 15.43 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 12800.00 | |
| 2 | $ 12400.00 | |||
| 5 | $ 12200.00 | |||
| 10 | $ 12000.00 | |||
Description
General part information
PANTILT4030HWS
POSITION RESOLUTION 0.01, POSIT
Documents
Technical documentation and resources
