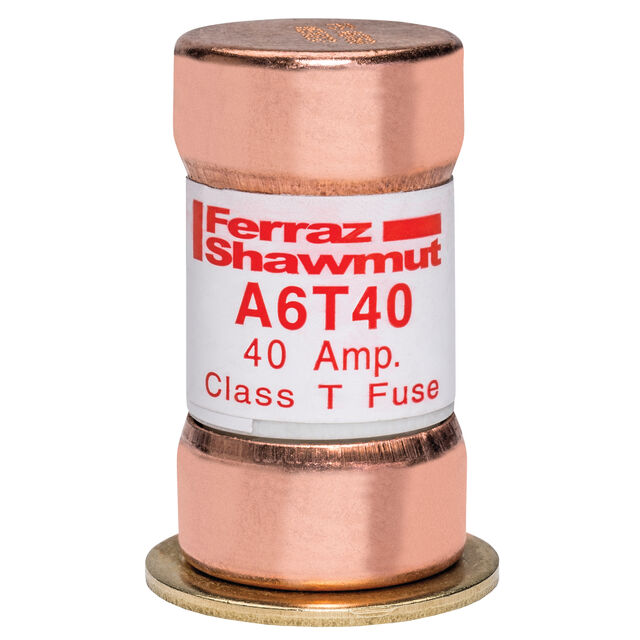

A6T40
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,CLASS T,FAST ACTING,200KA A
Deep-Dive with AI
Search across all available documentation for this part.
A6T40
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,CLASS T,FAST ACTING,200KA A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6T40 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA, UL |
| Breaking Capacity @ Rated Voltage | 200 kA, 100 kA |
| Class | T |
| Current Rating (Amps) | 40 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.811 in |
| Size / Dimension [diameter] | 20.6 mm |
| Size / Dimension [x] | 1.547 in |
| Size / Dimension [x] | 39.3 mm |
| Voltage Rating - AC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.48 | |
| 5 | $ 41.88 | |||
| 10 | $ 38.63 | |||
| 50 | $ 31.98 | |||
| 100 | $ 29.46 | |||
| 250 | $ 26.41 | |||
Description
General part information
A6T40
40A 600 VAC 300 VDC Fuse Cartridge Requires Holder
Documents
Technical documentation and resources
No documents available
