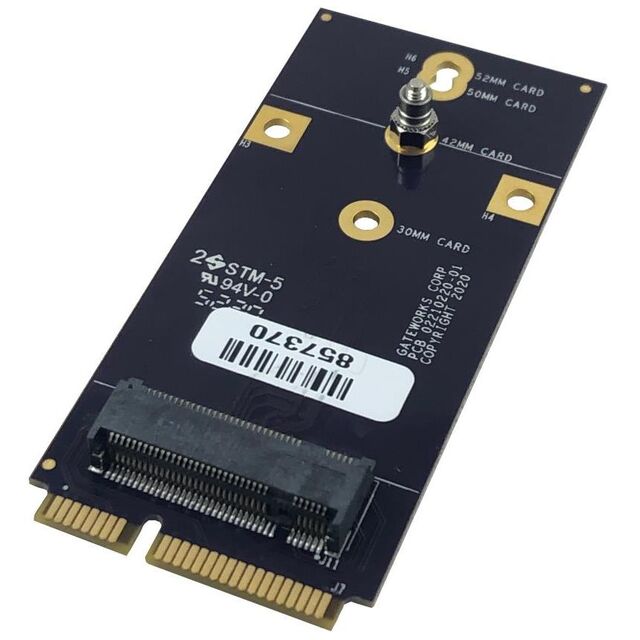

GW16141
ActiveGateworks Corporation
MINI-PCIE TO M.2 BKEY-USB3
Deep-Dive with AI
Search across all available documentation for this part.
GW16141
ActiveGateworks Corporation
MINI-PCIE TO M.2 BKEY-USB3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GW16141 |
|---|---|
| Expansion Site/Bus | Mini-PCIe |
| Form Factor | M.2 2280, Mini PCIe |
| Function | miniPCIe |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 2.598 in |
| Size / Dimension [x] | 66 mm |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.181 in |
| USB [custom] | USB 2.0 (1), USB 3.0 (1) |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 35.20 | |
Description
General part information
GW16141
MINI-PCIE TO M.2 BKEY-USB3
Documents
Technical documentation and resources
No documents available
