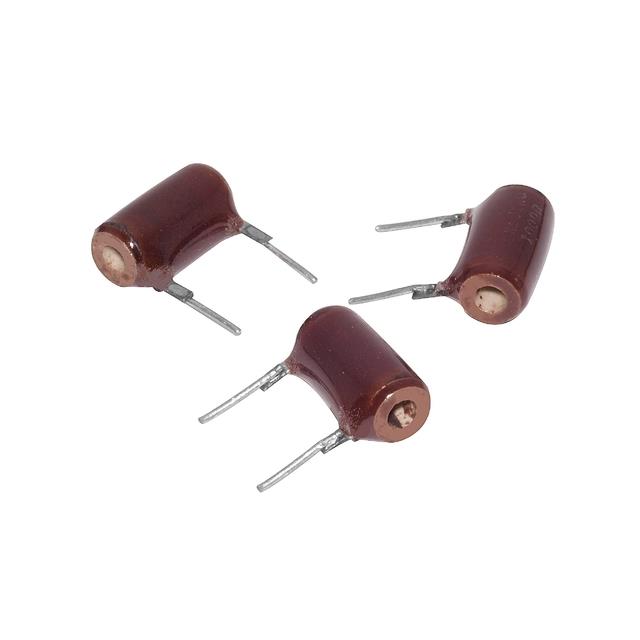

R3J750E
ActiveOhmite
RES 750 OHM 5% 3W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
R3J750E
ActiveOhmite
RES 750 OHM 5% 3W RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R3J750E |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Retardant Coating |
| Height - Seated (Max) [Max] | 11.91 mm |
| Height - Seated (Max) [Max] | 0.469 in |
| Number of Terminations | 2 |
| Package / Case | Radial |
| Power (Watts) | 3 W |
| Resistance | 750 Ohms |
| Size / Dimension [x] | 0.438 in |
| Size / Dimension [x] | 11.13 mm |
| Size / Dimension [y] | 7.95 mm |
| Size / Dimension [y] | 0.313 in |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | 260 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 105 | $ 3.50 | |
Description
General part information
R3J750E
750 Ohms ±5% 3W Through Hole Resistor Radial Flame Retardant Coating, Safety Wirewound
Documents
Technical documentation and resources
No documents available
