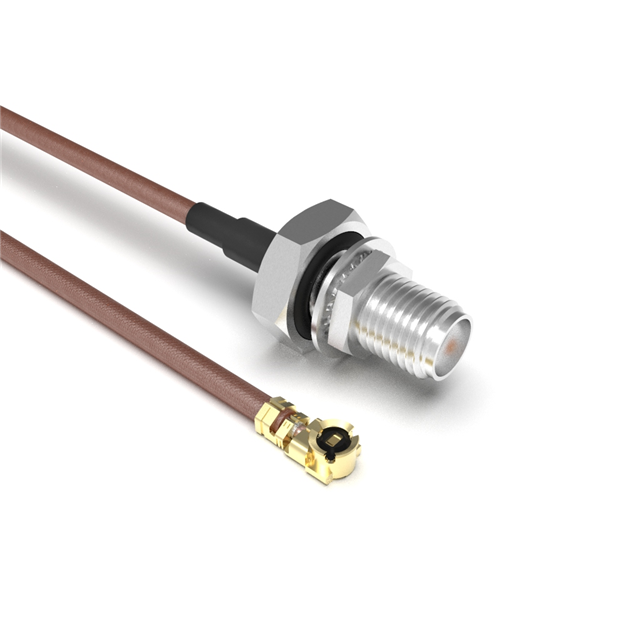

CAB412RF-0200-A-1-E
ActiveGCT (Gradconn)
COAX CBL MHF1 TO SMA 7.8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAB412RF-0200-A-1-E
ActiveGCT (Gradconn)
COAX CBL MHF1 TO SMA 7.8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAB412RF-0200-A-1-E |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated, Stainless Steel 303 |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP68/69K - Dust Tight, Water Resistant, Waterproof |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.11 | |
| 10 | $ 11.99 | |||
| 25 | $ 11.24 | |||
| 50 | $ 10.71 | |||
| 100 | $ 10.20 | |||
| 250 | $ 9.56 | |||
| 500 | $ 9.10 | |||
| 1000 | $ 8.67 | |||
Description
General part information
CAB412RF-0200-A-1-E
Cable Assembly Coaxial I-PEX MHF1 to SMA RG-178 7.874" (200.00mm)
