Technical Specifications
Parameters and characteristics for this part
| Specification | SMA6J54AFL-TP |
|---|---|
| Current - Peak Pulse (10/1000µs) | 6.9 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

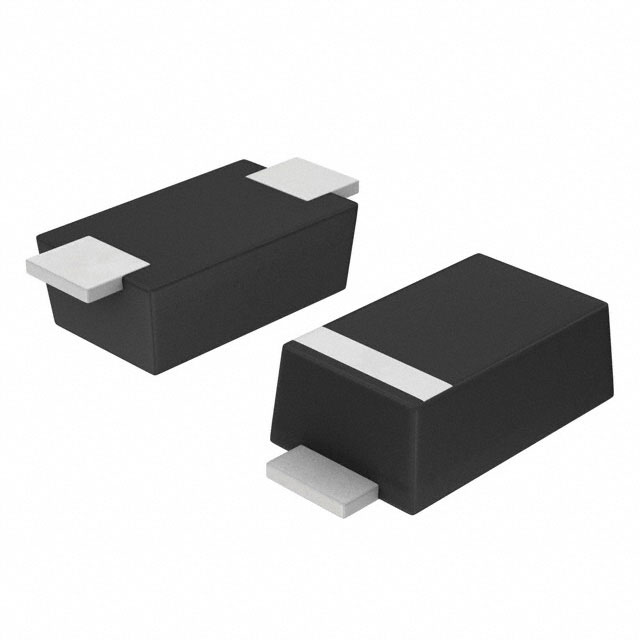

| Package / Case | SMA Flat Leads, DO-221AC |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Supplier Device Package | DO-221AC (SMA-FL) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 60 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 87.1 V |
| Voltage - Reverse Standoff (Typ) | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10000 | $ 0.10 | |
Description
General part information
SMA6J54AFL-TP
87.1V Clamp 6.9A Ipp Tvs Diode Surface Mount DO-221AC (SMA-FL)
