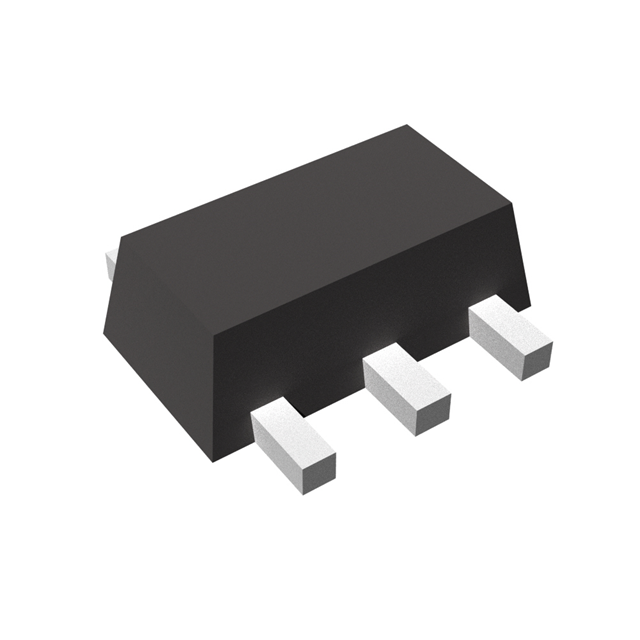

RP115H181D-T1-FE
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR 1.8V 1A SOT89-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP115H181D-T1-FE
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR 1.8V 1A SOT89-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP115H181D-T1-FE |
|---|---|
| Control Features | Enable |
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 160 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-89-5/6 |
| Protection Features | Over Current, Reverse Current, Over Temperature |
| PSRR | 80 dB |
| Supplier Device Package | SOT-89-5 |
| Voltage - Input (Max) [Max] | 5.25 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
| Voltage Dropout (Max) [Max] | 0.27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 1.10 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.71 | |||
| Tape & Reel (TR) | 1000 | $ 0.56 | ||
| 2000 | $ 0.52 | |||
| 5000 | $ 0.50 | |||
| 10000 | $ 0.48 | |||
Description
General part information
RP115H181D-T1-FE
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-5
