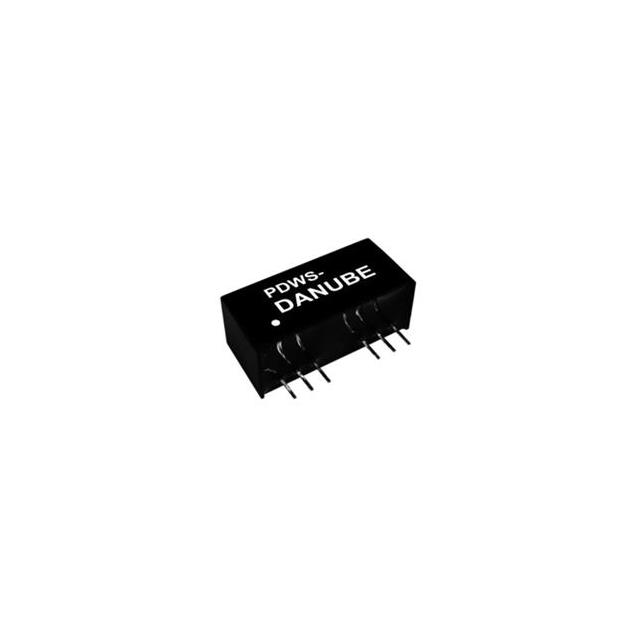

PDWS-2405
ActiveDiwell Electronics
DC DC CONVERTER 5V 9W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDWS-2405
ActiveDiwell Electronics
DC DC CONVERTER 5V 9W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDWS-2405 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 1.6 A |
| Efficiency | 85 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6 Leads |
| Package / Case | 8-SIP Module |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [y] | 9.6 mm |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.35 | |
| 5 | $ 7.64 | |||
| 10 | $ 7.35 | |||
| 25 | $ 6.98 | |||
| 50 | $ 6.72 | |||
| 100 | $ 6.46 | |||
| 250 | $ 6.14 | |||
| 500 | $ 5.91 | |||
Description
General part information
PDWS-2405
Isolated Module DC DC Converter 1 Output 5V 1.6A 18V - 36V Input
