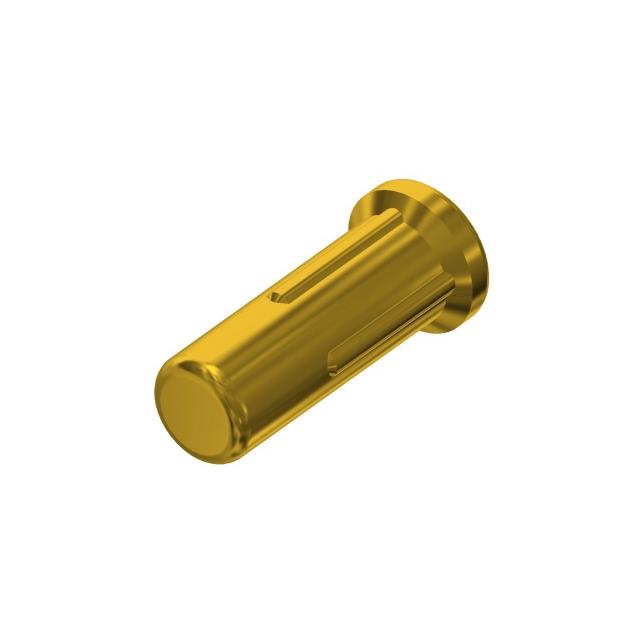

450-3998-01-03-00
ActiveCAMBION
SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
450-3998-01-03-00
ActiveCAMBION
SOCKET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 450-3998-01-03-00 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.032 in |
| Accepts Pin Diameter [Max] [diameter] | 0.81 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.76 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.03 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Closed Bottom |
| Flange Diameter [diameter] | 2.29 mm |
| Flange Diameter [diameter] | 0.09 in |
| Length - Overall [x] | 5.13 mm |
| Length - Overall [x] | 0.202 " |
| Mounting Hole Diameter [diameter] | 1.93 mm |
| Mounting Hole Diameter [diameter] | 0.076 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 0.19 in |
| Socket Depth | 4.83 mm |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.86 | |
| 1000 | $ 0.60 | |||
| 2500 | $ 0.42 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.26 | |||
Description
General part information
450-3998-01-03-00
Pin Receptacle Connector 0.030" ~ 0.032" (0.76mm ~ 0.81mm) Press-Fit
