54-00264
ActiveTensility International Corp

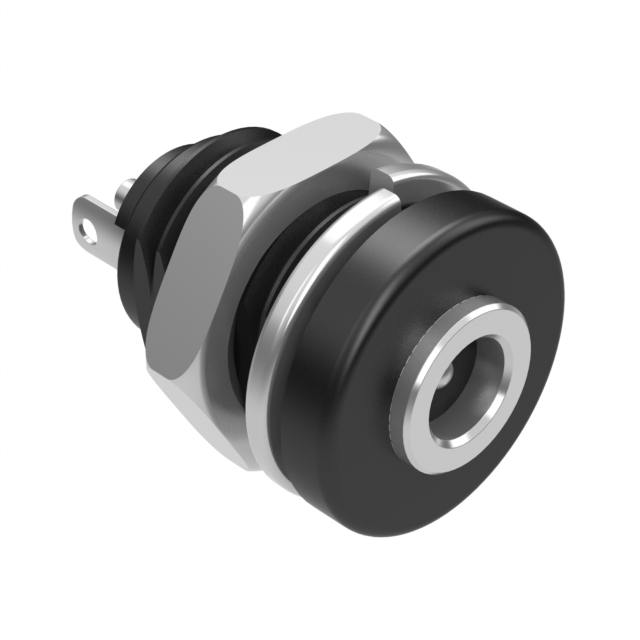

CONN JACK PNL MNT 3.5X1.1MM
Deep-Dive with AI
Search across all available documentation for this part.
54-00264
ActiveTensility International Corp
CONN JACK PNL MNT 3.5X1.1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-00264 |
|---|---|
| Actual Diameter [diameter] | 0.043 ", 0.138 " |
| Actual Diameter [diameter] | 3.5 mm, 1.1 mm |
| Body Color | Silver, Black |
| Connector Type | Jack |
| Contact Material | Brass, Beryllium Copper |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 6 A |
| Features | Mounting Hardware |
| Gender | Male |
| Housing Material | Polyamide (PA), Nylon |
| Industry Recognized Mating Diameter [diameter] | 3.5 mm, 1.1 mm |
| Industry Recognized Mating Diameter [diameter] | 0.043 ", 0.138 in |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Thread Size | M9x1 |
| Voltage - Rated | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.75 | |
| 10 | $ 4.31 | |||
| 25 | $ 4.08 | |||
| 40 | $ 3.99 | |||
| 80 | $ 3.80 | |||
| 230 | $ 3.32 | |||
| 500 | $ 3.23 | |||
| 1000 | $ 2.75 | |||
| 2500 | $ 2.56 | |||
Description
General part information
54-00264
Power Barrel Connector Jack 1.10mm ID (0.043"), 3.50mm OD (0.138") Panel Mount
Documents
Technical documentation and resources
No documents available
