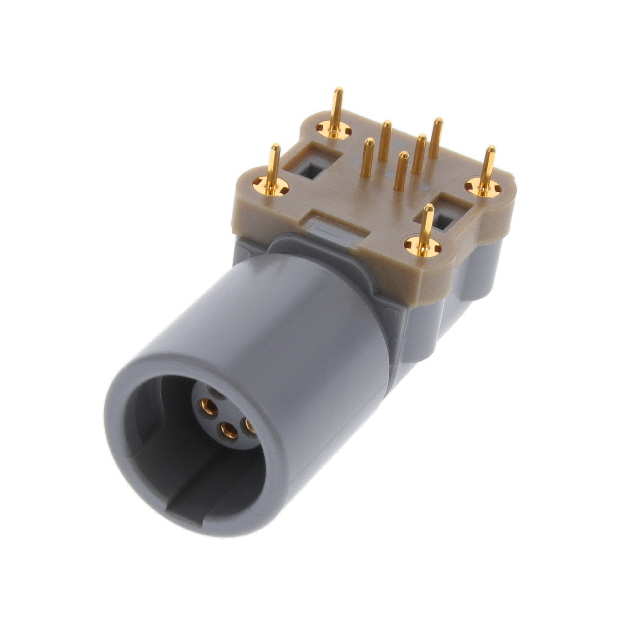

PPG.M0.5GG.N
ActiveLEMO
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPG.M0.5GG.N
ActiveLEMO
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPG.M0.5GG.N |
|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) |
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 7 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell, Board Guide |
| Ingress Protection | IP50 |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | G |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | M05 |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.74 | |
| 10 | $ 28.67 | |||
| 25 | $ 27.43 | |||
| 50 | $ 26.54 | |||
| 100 | $ 25.66 | |||
| 250 | $ 24.24 | |||
Description
General part information
PPG.M0.5GG.N
5 Position Circular Connector Receptacle, Female Sockets Solder
