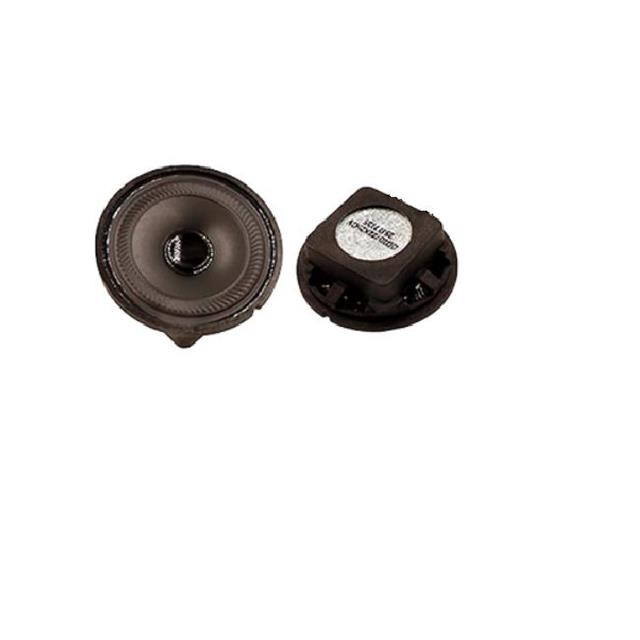

SOD20722X4CVT-CC
ActiveSeltech
SPEAKER - 50MM DIAMETER WITH WIR
Deep-Dive with AI
Search across all available documentation for this part.
SOD20722X4CVT-CC
ActiveSeltech
SPEAKER - 50MM DIAMETER WITH WIR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SOD20722X4CVT-CC |
|---|---|
| Efficiency - dBA | 84 dBA |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 300 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 300 Hz |
| Height - Seated (Max) [Max] | 0.717 in |
| Height - Seated (Max) [Max] | 18.2 mm |
| Impedance | 4 Ohms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Power - Max [Max] | 2 W |
| Power - Rated | 1 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.969 in |
| Size / Dimension [diameter] | 50 mm |
| Termination | Wire Leads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.25 | |
| 10 | $ 4.00 | |||
| 100 | $ 3.75 | |||
Description
General part information
SOD20722X4CVT-CC
4 Ohms General Purpose Speaker 1 W 300 Hz ~ 10 kHz Top Round
Documents
Technical documentation and resources
No documents available
