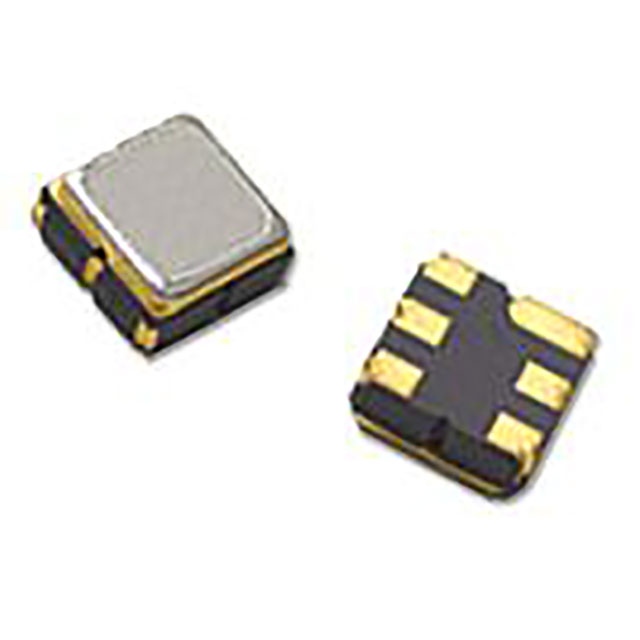

SF2226E
ActiveRFMi
FILTER, SAW, 2132.5 MHZ, 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2226E
ActiveRFMi
FILTER, SAW, 2132.5 MHZ, 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2226E |
|---|---|
| Applications | General Purpose |
| Bandwidth | 45 MHz |
| Frequency - Center | 2.1325 GHz |
| Height (Max) [Max] [z] | 0.054 in |
| Height (Max) [Max] [z] | 1.38 mm |
| Insertion Loss | 2.4 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 2.98 | |
Description
General part information
SF2226E
2.1325GHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 2.4dB 45MHz Bandwidth 6-SMD, No Lead
