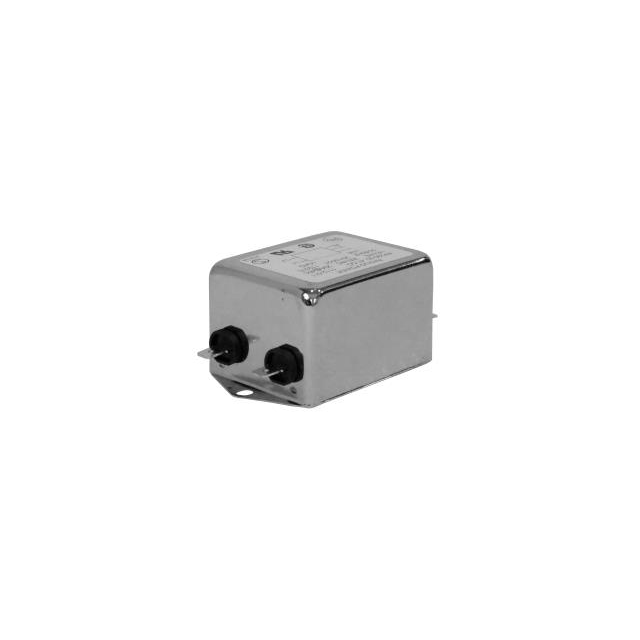

RP230-6.5-1-W
ActiveAstrodyne TDI
LINE FLTR 250VAC 6.5A CHASS MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP230-6.5-1-W
ActiveAstrodyne TDI
LINE FLTR 250VAC 6.5A CHASS MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP230-6.5-1-W |
|---|---|
| Applications | General Purpose |
| Approval Agency | CE, SEMKO, cURus |
| Configuration | Two Stage |
| Current | 6.5 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.35 | |
| 5 | $ 36.96 | |||
| 10 | $ 36.42 | |||
Description
General part information
RP230-6.5-1-W
Single Phase EMC/EMI Line Filter 6.5 A 250V 50/60Hz Two Stage Wire Leads
