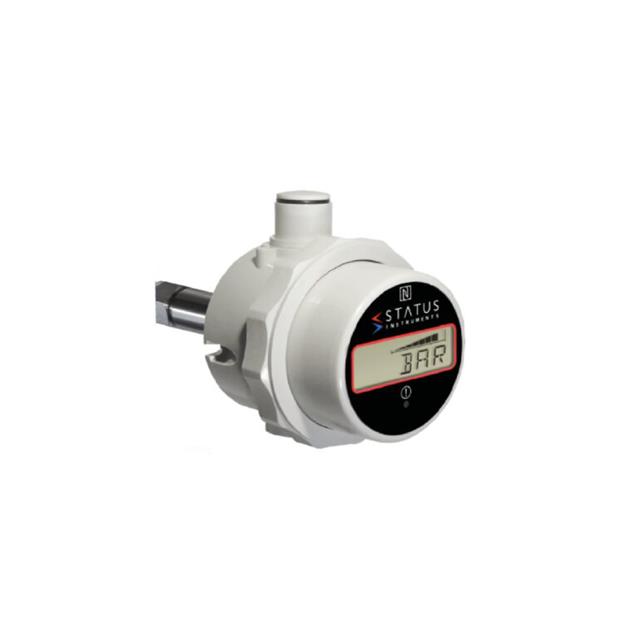

SEM710PM2/DP/C/30/5
ActiveStatus Instruments Ltd
PRESSURE TRANSMITTER
Deep-Dive with AI
Search across all available documentation for this part.
SEM710PM2/DP/C/30/5
ActiveStatus Instruments Ltd
PRESSURE TRANSMITTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SEM710PM2/DP/C/30/5 |
|---|---|
| Accuracy | 0.7 % |
| Maximum Pressure [Max] | 12000 kPa |
| Maximum Pressure [Max] | 1740.45 PSI |
| Operating Pressure | 3000 kPa |
| Operating Pressure | 435.1 PSI |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Module |
| Port Style | Threaded |
| Pressure Type | Sealed Gauge |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 165.00 | |
Description
General part information
SEM710PM2/DP/C/30/5
PRESSURE TRANSMITTER
Documents
Technical documentation and resources
No documents available
