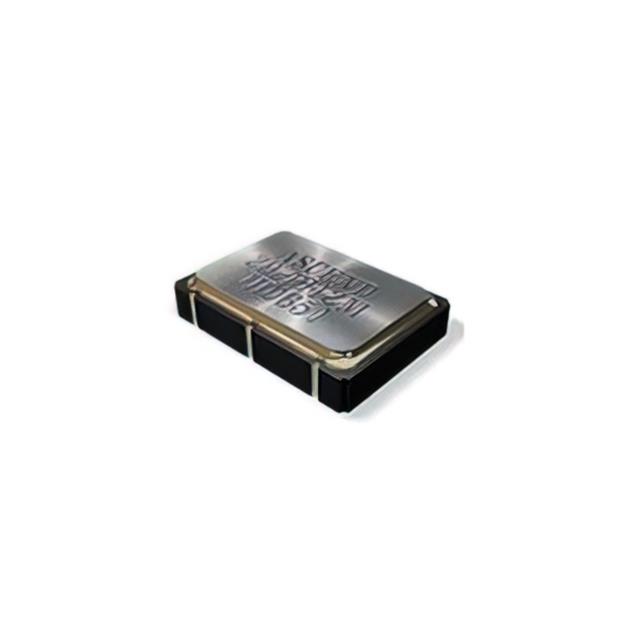

OCC2DC3BT-156.250M-TR
ActiveAscend Frequency Devices
XTAL OSC XO 156.2500MHZ 6PAD PKG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OCC2DC3BT-156.250M-TR
ActiveAscend Frequency Devices
XTAL OSC XO 156.2500MHZ 6PAD PKG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OCC2DC3BT-156.250M-TR |
|---|---|
| Base Resonator | Crystal |
| Frequency | 156.25 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.283 in |
| Size / Dimension [x] | 7.2 mm |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.36 | |
| 10 | $ 5.99 | |||
| 50 | $ 5.81 | |||
| 100 | $ 5.63 | |||
| 500 | $ 5.26 | |||
| 1000 | $ 4.57 | |||
Description
General part information
OCC2DC3BT-156.250M-TR
156.25 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
