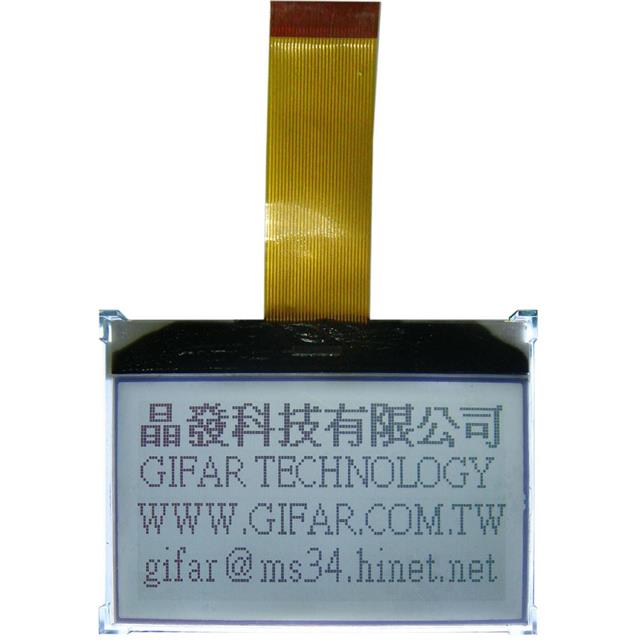

GFG128064F-FPFA-01
ActiveGi Far technology Co., Ltd
GFG128064B009(128X64, FSTN-P, WH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFG128064F-FPFA-01
ActiveGi Far technology Co., Ltd
GFG128064B009(128X64, FSTN-P, WH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GFG128064F-FPFA-01 |
|---|---|
| Background Color | White |
| Backlight | LED - White |
| Controller Type | ST7066U-0A |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Pitch [x] | 0.4 mm |
| Dot Pitch [y] | 0.57 mm |
| Dot Size [x] | 0.35 mm |
| Dot Size [y] | 0.52 mm |
| Interface | Parallel |
| Viewing Area [y] | 54 mm |
| Viewing Area [z] | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 30.72 | |
| 10 | $ 23.27 | |||
| 100 | $ 20.48 | |||
| 500 | $ 18.62 | |||
| 1000 | $ 16.76 | |||
Description
General part information
GFG128064F-FPFA-01
Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic Parallel
