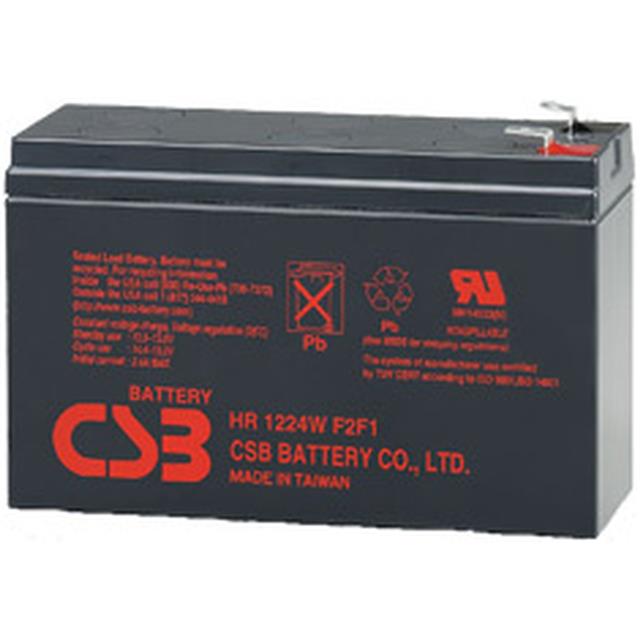

HR1224WF2F1
ActiveCSB Battery
BATTERY LEAD ACID 12V 2AH 12V
Deep-Dive with AI
Search across all available documentation for this part.
HR1224WF2F1
ActiveCSB Battery
BATTERY LEAD ACID 12V 2AH 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HR1224WF2F1 |
|---|---|
| Battery Cell Size | 12 V |
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 2 Ah |
| Discharge Rate | 130 A |
| Size / Dimension [x] | 151 mm |
| Size / Dimension [x] | 5.94 in |
| Size / Dimension [y] | 2.01 in |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [z] | 94.3 mm |
| Size / Dimension [z] | 3.71 " |
| Standard Charge Current | 2.4 A |
| Termination Style | Spade, .250" (6.3mm) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 12 | $ 34.15 | |
| 48 | $ 32.92 | |||
Description
General part information
HR1224WF2F1
12V 12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 2Ah
Documents
Technical documentation and resources
No documents available
