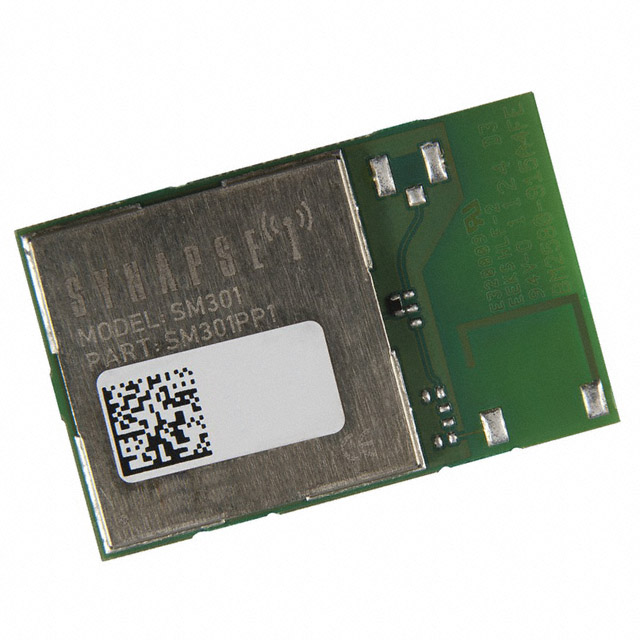

SM301PU1
ActiveSynapse Wireless
RF TXRX MOD ISM<1GHZU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
SM301PU1
ActiveSynapse Wireless
RF TXRX MOD ISM<1GHZU.FL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM301PU1 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 18 mA |
| Current - Transmitting | 30 mA |
| Data Rate | 150 kbps |
| Frequency | 868 MHz |
| Memory Size | 192 kB |
| Modulation | FHSS, GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 13 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -121 dBm |
| Serial Interfaces | UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SM301PU1
General ISM < 1GHz Transceiver Module 868MHz Antenna Not Included, U.FL Surface Mount
