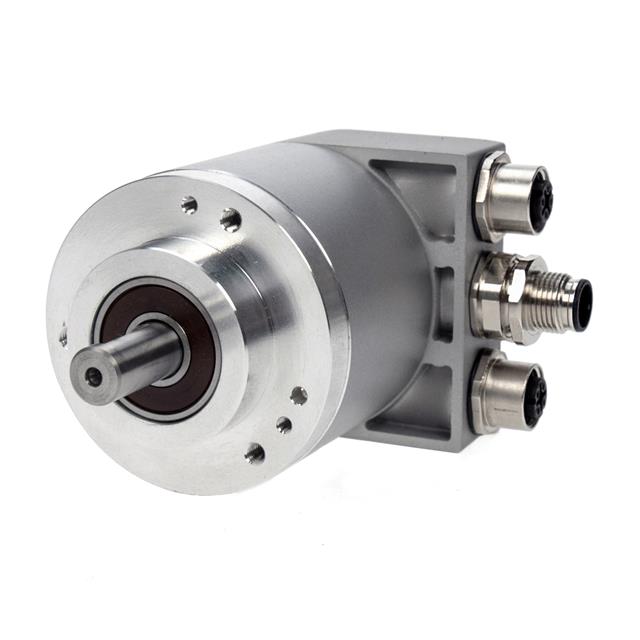

AI2512121BW2R
ActiveDynapar
0012 BITS, E/IP, 3/8"
Deep-Dive with AI
Search across all available documentation for this part.
AI2512121BW2R
ActiveDynapar
0012 BITS, E/IP, 3/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AI2512121BW2R |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Absolute, Optical |
| Mounting Type | Flange Mount |
| Orientation | User Selectable |
| Output Type | True |
| Pulses per Revolution | 24 per Revolution |
| Rotational Life (Cycles Min) [Min] | 10 K |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 900.60 | |
Description
General part information
AI2512121BW2R
Rotary Encoder Absolute, Optical 24 Binary (Absolute) User Selectable
Documents
Technical documentation and resources
No documents available
