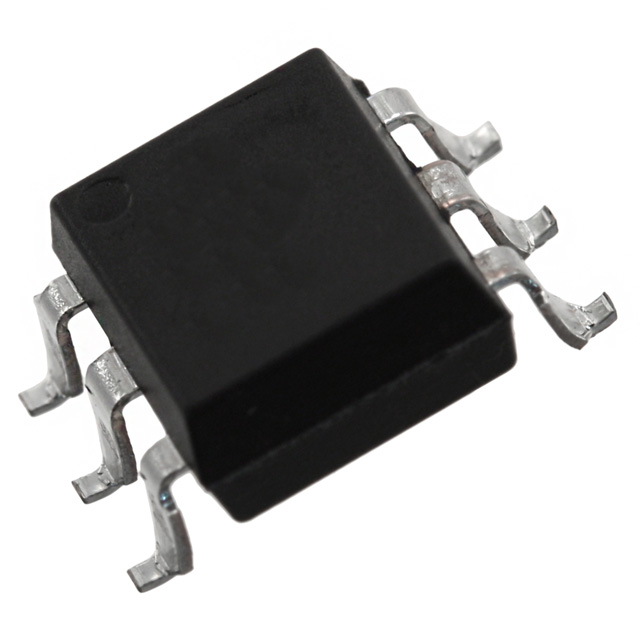

4N37S(TA)
ActiveEverlight Electronics Co Ltd
OPTOISO 5KV TRANS W/BASE 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4N37S(TA)
ActiveEverlight Electronics Co Ltd
OPTOISO 5KV TRANS W/BASE 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4N37S(TA) |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 60 mA |
| Current Transfer Ratio (Min) [Min] | 100 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Turn On / Turn Off Time (Typ) [custom] | 10 µs |
| Turn On / Turn Off Time (Typ) [custom] | 9 µs |
| Vce Saturation (Max) [Max] | 300 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.26 | |
| 5000 | $ 0.25 | |||
| 10000 | $ 0.25 | |||
| 25000 | $ 0.24 | |||
Description
General part information
4N37S(TA)
Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
