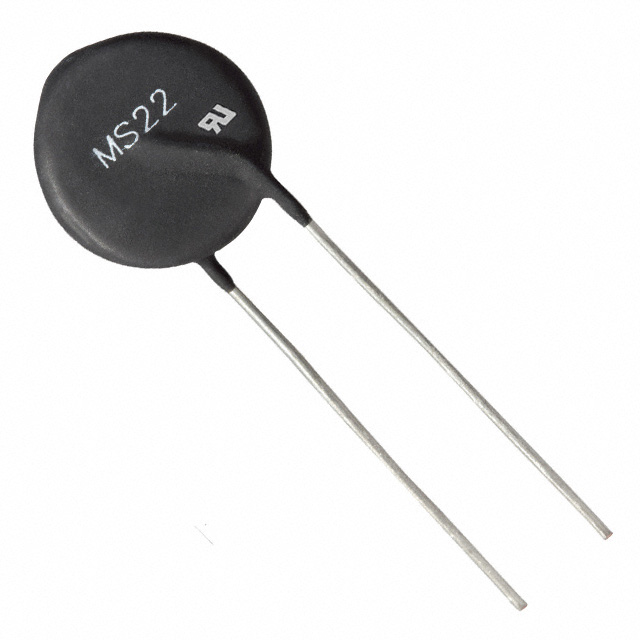

MS2250004B
ActiveAMETHERM
ICL 50 OHM 25% 4A 23MM
Deep-Dive with AI
Search across all available documentation for this part.
MS2250004B
ActiveAMETHERM
ICL 50 OHM 25% 4A 23MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS2250004B |
|---|---|
| Current - Steady State Max | 4 A |
| Diameter [diameter] | 0.906 in |
| Diameter [diameter] | 23 mm |
| Lead Spacing | 0.307 in |
| Lead Spacing | 7.8 mm |
| R @ 25°C | 50 Ohms |
| R @ Current | 360 mOhms |
| Tolerance | 25 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.35 | |
| 5 | $ 3.60 | |||
| 10 | $ 3.33 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.54 | |||
| 300 | $ 2.24 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 1.94 | |||
| 5000 | $ 1.74 | |||
Description
General part information
MS2250004B
Inrush Current Limiter 50 Ohms ±25% 4 A 0.906" (23.00mm)
