CU20025ECPB-W1J
ObsoleteSump Alarm Inc.
MODULE VF DISPLAY 20X2 EXT TEMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CU20025ECPB-W1J |
|---|---|
| Character Size [y] | 2.4 mm |
| Character Size [z] | 4.7 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Interface | CMOS, 8-Bit, Parallel |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 11.6 mm |
| Viewing Area [x] | 70.8 mm |
| Viewing Area [y] | 11.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

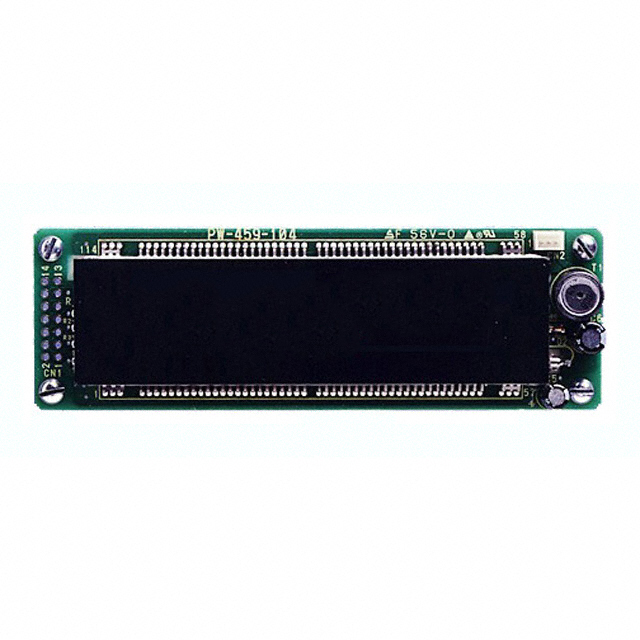

CU20025ECPB-W1J
Vacuum Fluorescent Display (VFD) 20 x 2 Character 5V Parallel, 8-Bit, CMOS 116.00mm x 37.00mm x 11.60mm
