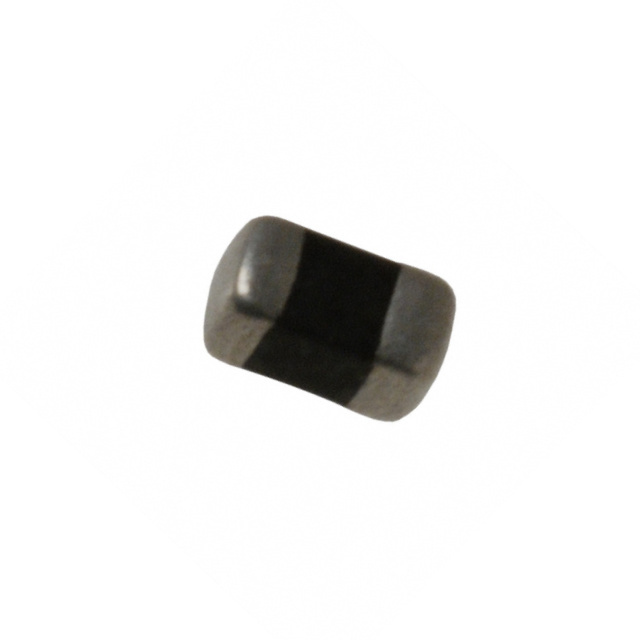

SDVL5650SD300PTHS122
ActiveShenzhen Sunlord Electronics Co., Ltd.
VARISTOR 42V 800A 2220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDVL5650SD300PTHS122
ActiveShenzhen Sunlord Electronics Co., Ltd.
VARISTOR 42V 800A 2220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDVL5650SD300PTHS122 |
|---|---|
| Current - Surge | 1.2 kA |
| Energy | 2.6 J |
| Maximum AC Volts [Max] | 21.3 V |
| Maximum DC Volts [Max] | 30 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 5750 Metric |
| Package / Case | 2220 |
| Varistor Voltage (Max) [Max] | 46 V |
| Varistor Voltage (Min) [Min] | 37 V |
| Varistor Voltage (Typ) | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.29 | |
Description
General part information
SDVL5650SD300PTHS122
42 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
