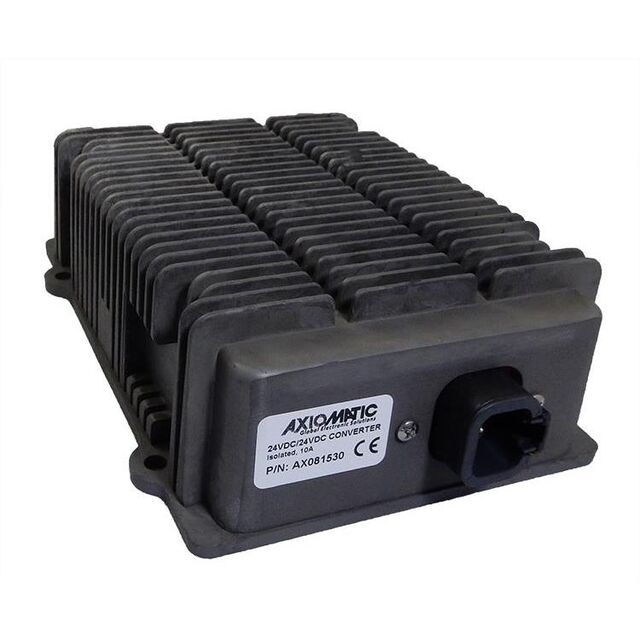

AX081530K
ActiveAxiomatic Technologies Corporation
24VDC/24VDC ISOLATED CONVERTER K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AX081530K
ActiveAxiomatic Technologies Corporation
24VDC/24VDC ISOLATED CONVERTER K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AX081530K |
|---|---|
| Applications | Railway, Industrial, ITE (Commercial) |
| Approval Agency | UKCA, CB, UL, CE |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 91 % |
| Mounting Type | Desktop |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 228.6 mm |
| Size / Dimension [x] | 9 in |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 63.5 mm |
| Size / Dimension [z] | 2.5 in |
| Standard Number | 60950-1 |
| Type | Isolated |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Isolation | 707 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AX081530K
Isolated DC DC Converter 1 Output 24V 10A 36V Input
