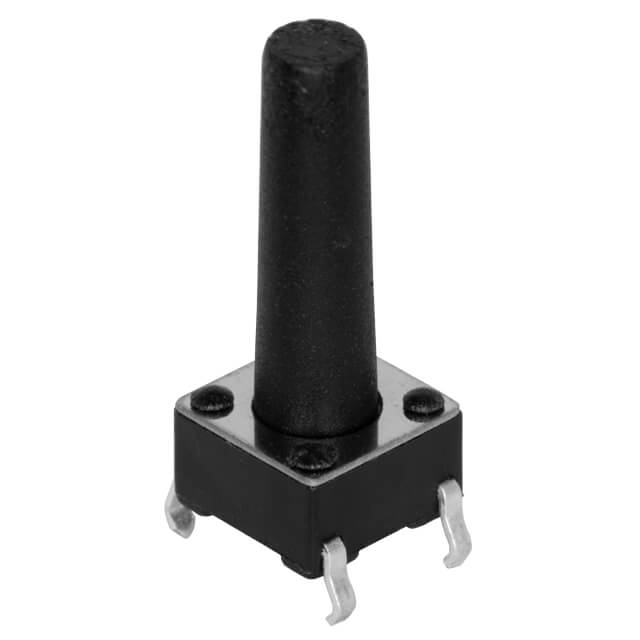

TS02-66-153-BK-260-SCR-D
ActiveCUI Devices
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 2.6N
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS02-66-153-BK-260-SCR-D
ActiveCUI Devices
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 2.6N
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS02-66-153-BK-260-SCR-D |
|---|---|
| Actuator Height off PCB, Vertical [z] | 15.3 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 60000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 25 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 3000 | $ 0.05 | |||
Description
General part information
TS02-66-153-BK-260-SCR-D
Tactile Switch SPST-NO Top Actuated Through Hole
