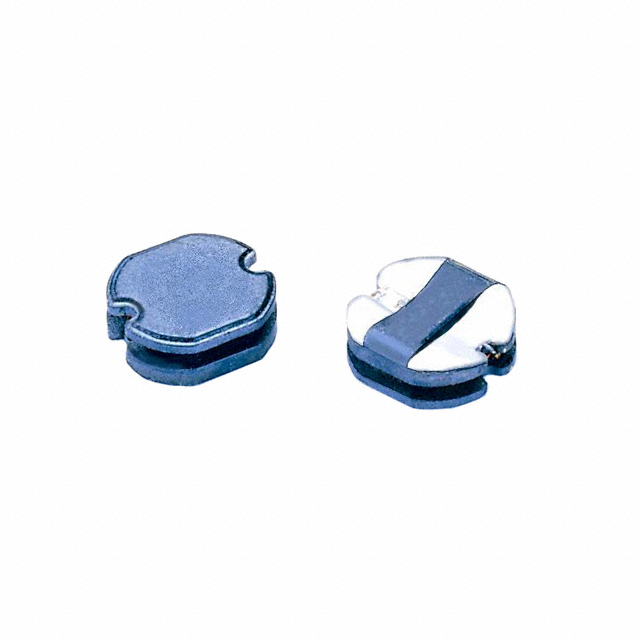

SC52-270
ActiveSignal Transformer
FIXED IND 27UH 780MA 470MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SC52-270
ActiveSignal Transformer
FIXED IND 27UH 780MA 470MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC52-270 |
|---|---|
| Current - Saturation (Isat) | 660 mA |
| Current Rating (Amps) | 780 mA |
| DC Resistance (DCR) [Max] | 470 mOhm |
| Height - Seated (Max) [Max] [z] | 0.091 " |
| Height - Seated (Max) [Max] [z] | 2.3 mm |
| Inductance | 27 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4500 | $ 0.22 | |
Description
General part information
SC52-270
27 µH Unshielded Wirewound Inductor 780 mA 470mOhm Max Nonstandard
