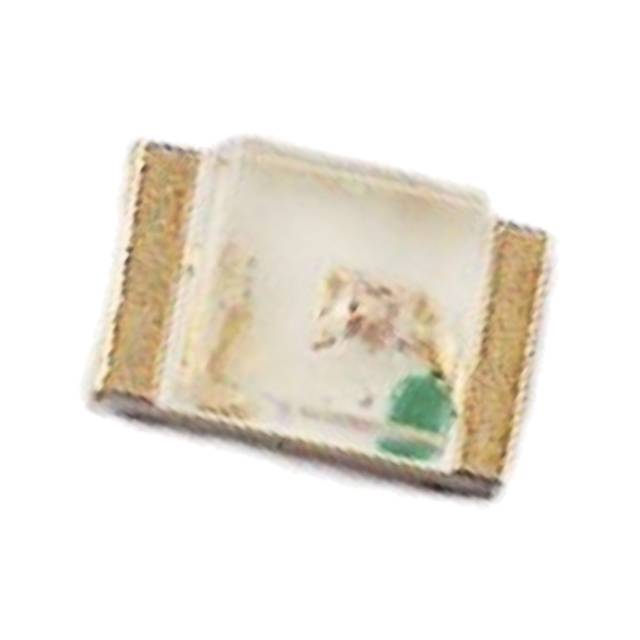

L171L-QOC-TR
ActiveAmerican Opto Plus LED
LED ORANGE CLEAR 0805 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L171L-QOC-TR
ActiveAmerican Opto Plus LED
LED ORANGE CLEAR 0805 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L171L-QOC-TR |
|---|---|
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 125 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength - Dominant | 605 nm |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.05 | |
| 6000 | $ 0.04 | |||
| 18000 | $ 0.04 | |||
| 63000 | $ 0.04 | |||
| 132000 | $ 0.03 | |||
Description
General part information
L171L-QOC-TR
Orange 605nm LED Indication - Discrete 2.15V 0805 (2012 Metric)
