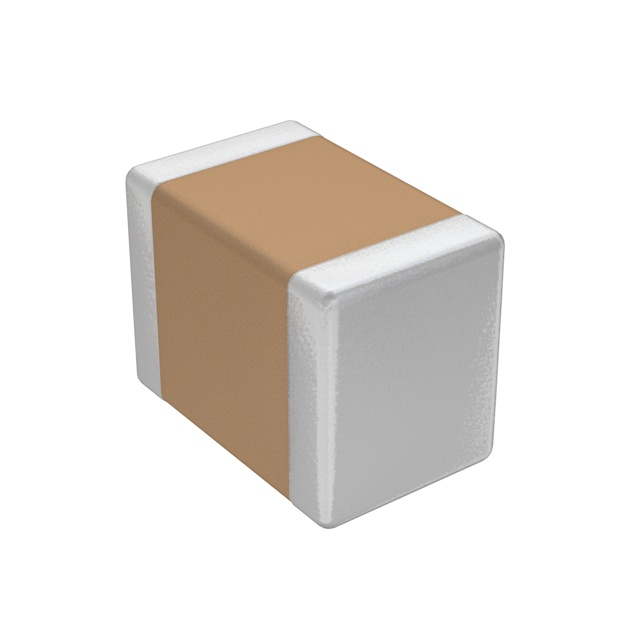

TDCT500W102K1GV001T
ObsoleteJOHANSON DIELECTRICS
CAP CER 1000PF 50V X7R 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDCT500W102K1GV001T |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.001 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2.03 mm |
| Size / Dimension [x] | 0.08 " |
| Size / Dimension [y] | 0.05 " |
| Size / Dimension [y] | 1.27 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] [custom] | 0.05 in |
| Thickness (Max) [Max] [custom] | 1.27 mm |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TDCT500W102K1GV001T
1000 pF ±10% 50V Ceramic Capacitor X7R 0805 (2012 Metric)
