ISP621-4GBG
ActiveIsocom Components 2004 LTD
16PIN TRANSISTOR OUTPUT, QUAD OP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISP621-4GBG
ActiveIsocom Components 2004 LTD
16PIN TRANSISTOR OUTPUT, QUAD OP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISP621-4GBG |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) [Max] | 600 % |
| Current Transfer Ratio (Min) [Min] | 100 % |
| Input Type | DC |
| Mounting Type | Through Hole |
| Number of Channels | 4 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | 1.81 mOhm |

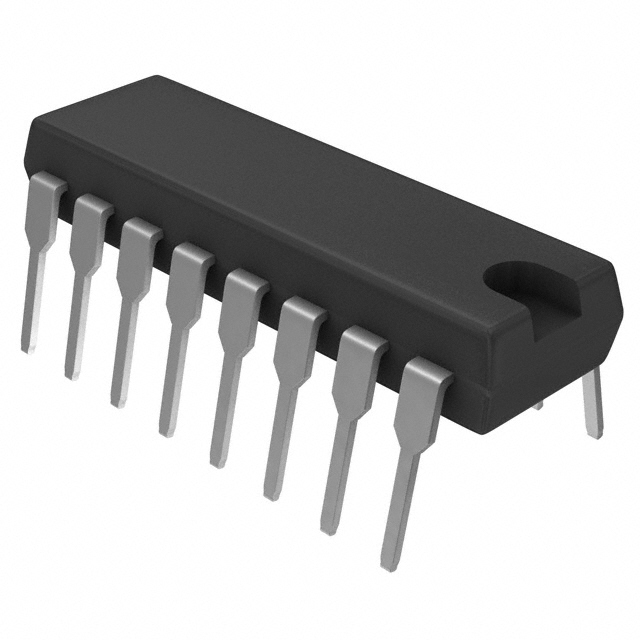

| Package / Case | 16-DIP |
| Package / Case | 10.16 mm |
| Package / Case | 10.16 mm |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Rise / Fall Time (Typ) [custom] | 4 µs |
| Supplier Device Package | 16-DIP |
| Vce Saturation (Max) [Max] | 400 mV |
| Voltage - Forward (Vf) (Typ) | 1.15 V |
| Voltage - Isolation | 5300 Vrms |
| Voltage - Output (Max) [Max] | 55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 0.72 | |
Description
General part information
ISP621-4GBG
Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
