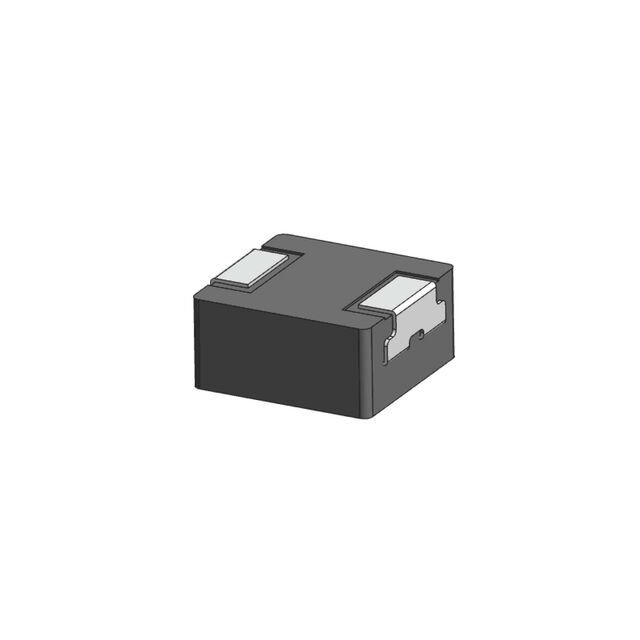

VCHW042A-4R7MS5
ActiveDelta Electronics/Cyntec
IND SMD 4.7UH AUTO GRADE CHOKE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VCHW042A-4R7MS5
ActiveDelta Electronics/Cyntec
IND SMD 4.7UH AUTO GRADE CHOKE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VCHW042A-4R7MS5 |
|---|---|
| Current - Saturation (Isat) | 3.9 A |
| Current Rating (Amps) | 3.6 A |
| DC Resistance (DCR) | 53.8 mOhm |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.48 | ||
| 10 | $ 1.15 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.69 | |||
| Tape & Reel (TR) | 2000 | $ 0.64 | ||
| 4000 | $ 0.59 | |||
Description
General part information
VCHW042A-4R7MS5
4.7 µH Unshielded Molded Inductor 3.6 A 53.8mOhm Nonstandard
Documents
Technical documentation and resources
