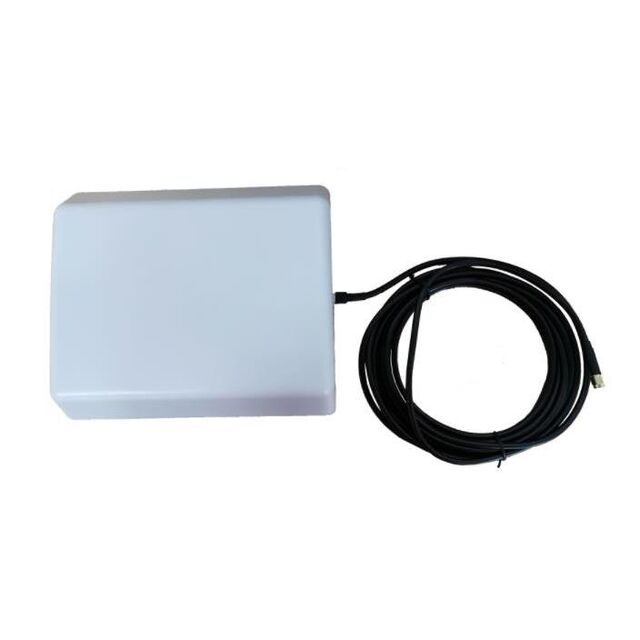

MASWELL 4G/3G/WIFI PANEL ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN_GSM_916
ActiveSuzhou Maswell Communication Technology Co. Ltd
MASWELL 4G/3G/WIFI PANEL ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN_GSM_916 |
|---|---|
| Antenna Type | Panel |
| Frequency (Center/Band) | 2.45 GHz, 1.94 GHz, 892 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.5 GHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz, 2.4 GHz |
| Gain | 9 dBi, 6 dB, 10 dBi |
| Height (Max) [Max] [z] | 1.756 in |
| Height (Max) [Max] [z] | 44.6 mm |
| Mounting Type | Screw |
| Number of Bands | 3 |
| RF Family/Standard | Cellular, WiFi |
| Termination | SMA, N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.18 | |
| 10 | $ 48.68 | |||
| 25 | $ 46.64 | |||
| 100 | $ 42.27 | |||
Description
General part information
AN_GSM_916
RF ANTENNA 3G, 4G, Wi-Fi Panel N Type Female, SMA Screw
