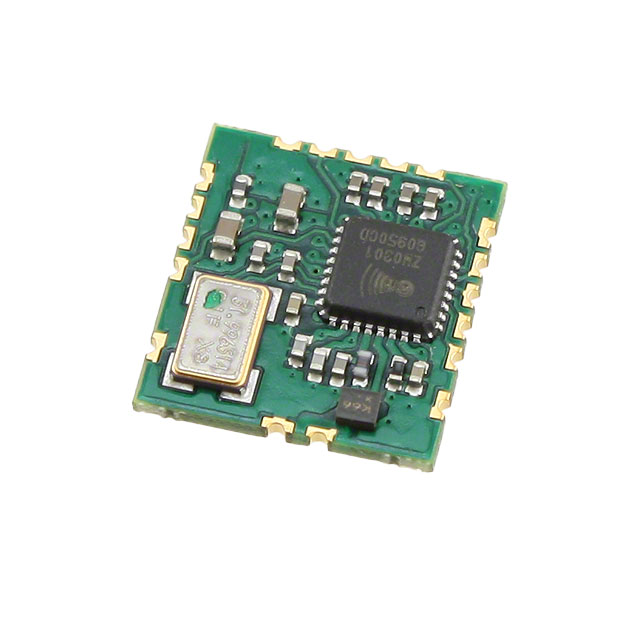

ZM3102AM-CME1
ObsoleteSigma Designs Inc.
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZM3102AM-CME1
ObsoleteSigma Designs Inc.
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZM3102AM-CME1 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 23 mA |
| Current - Transmitting [Max] | 36 mA |
| Current - Transmitting [Min] | 24 mA |
| Data Rate | 40 kbps |
| Frequency | 868 MHz |
| Memory Size | 2 kB, 32 kB |
| Modulation | FSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -15 °C |
| Package / Case | Module |
| Power - Output | -2 dBm |
| Protocol | Z-Wave® |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -102 dBm |
| Serial Interfaces | UART, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.79 | |
Description
General part information
ZM3102AM-CME1
General ISM < 1GHz Z-Wave® Transceiver Module 868MHz Antenna Not Included Surface Mount
