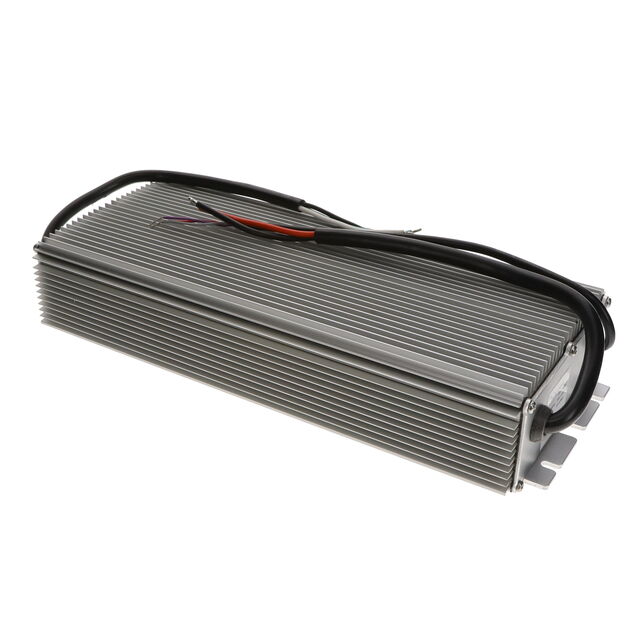

PLD600-SMT-54Z
ActivePowerland Technology, Inc.
600 WATT LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLD600-SMT-54Z
ActivePowerland Technology, Inc.
600 WATT LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLD600-SMT-54Z |
|---|---|
| Approval Agency | CE, cURus, CB, FCC |
| Current - Output (Max) [Max] | 11.1 A |
| Dimming | Analog, PWM |
| Efficiency | 95 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 599 W |
| Ratings | IP67 |
| Size / Dimension [x] | 11.02 in |
| Size / Dimension [x] | 280 mm |
| Size / Dimension [y] | 123 mm |
| Size / Dimension [y] | 4.84 " |
| Size / Dimension [z] | 2.13 " |
| Size / Dimension [z] | 54 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 108 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 54 V |
| Voltage - Output [Min] | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 142.68 | |
| 5 | $ 130.44 | |||
| 10 | $ 125.50 | |||
| 25 | $ 119.24 | |||
| 50 | $ 114.71 | |||
Description
General part information
PLD600-SMT-54Z
11.1A 36 ~ 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
