TPT7721F-SO1R
Active3PEAK
GENERAL PURPOSE DIGITAL ISOLATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPT7721F-SO1R
Active3PEAK
GENERAL PURPOSE DIGITAL ISOLATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPT7721F-SO1R |
|---|---|
| Channel Type | Unidirectional |
| Common Mode Transient Immunity (Min) [Min] | 150 kV/µs |
| Data Rate | 150 Mbps |
| Inputs - Side 1/Side 2 | 1/1 |
| Isolated Power | True |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

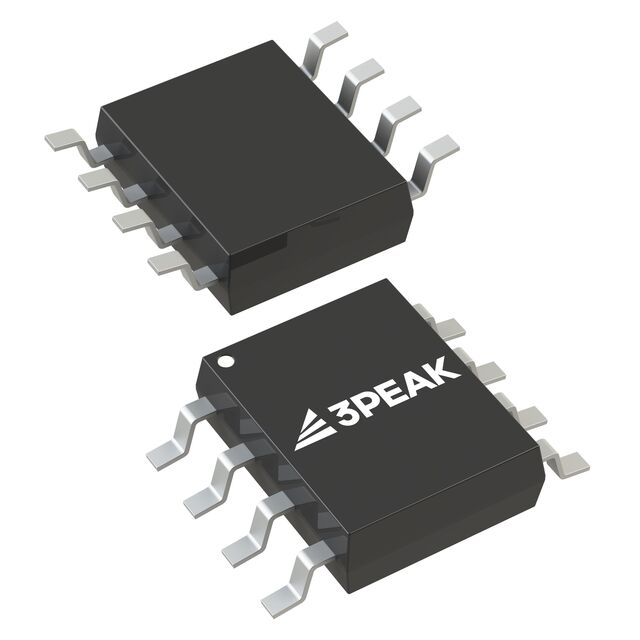

| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Propagation Delay tpLH / tpHL (Max) [Max] | 18 ns |
| Pulse Width Distortion (Max) | 5 ns |
| Rise / Fall Time (Typ) [custom] | 0.7 ns |
| Rise / Fall Time (Typ) [custom] | 700 ps |
| Supplier Device Package | 8-SOP |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Voltage - Isolation | 3750 Vrms |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.81 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.45 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.05 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.92 | |||
| 25 | $ 1.81 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.45 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.05 | |||
| Tape & Reel (TR) | 4000 | $ 0.99 | ||
Description
General part information
TPT7721F-SO1R
General Purpose Digital Isolator 3750Vrms 2 Channel 150Mbps 150kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
