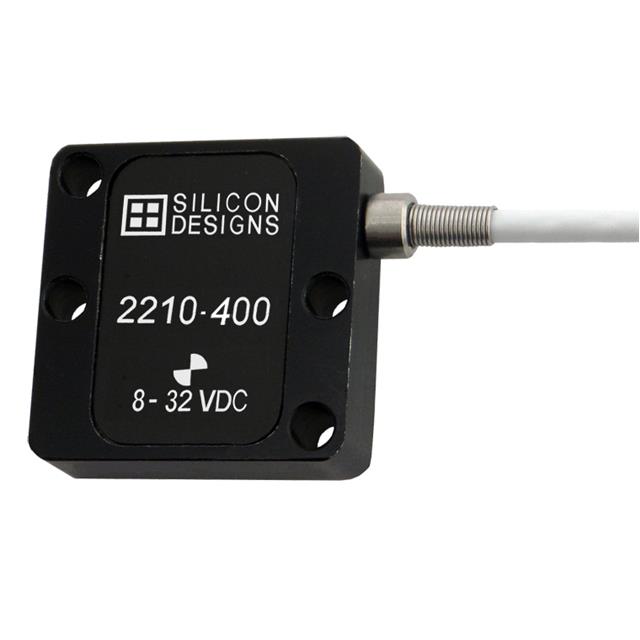

2210-400
ActiveSilicon Designs
1-AXIS 400G DC ACCEL LOW COST
Deep-Dive with AI
Search across all available documentation for this part.
2210-400
ActiveSilicon Designs
1-AXIS 400G DC ACCEL LOW COST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2210-400 |
|---|---|
| Acceleration Range [Max] | 400 g |
| Acceleration Range [Min] | -400 g |
| Axis [x] | X |
| Bandwidth [Max] | 4.2 kHz |
| Bandwidth [Min] | 0 Hz |
| Mounting Type | Screw Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 10 mV/g |
| Supplier Device Package | Module |
| Type | Analog |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 656.25 | |
| 25 | $ 637.50 | |||
| 50 | $ 618.75 | |||
| 100 | $ 593.75 | |||
| 500 | $ 568.75 | |||
| 1000 | $ 555.00 | |||
Description
General part information
2210-400
Accelerometer X Axis ±400g 0Hz ~ 4.2kHz Module
Documents
Technical documentation and resources
No documents available
