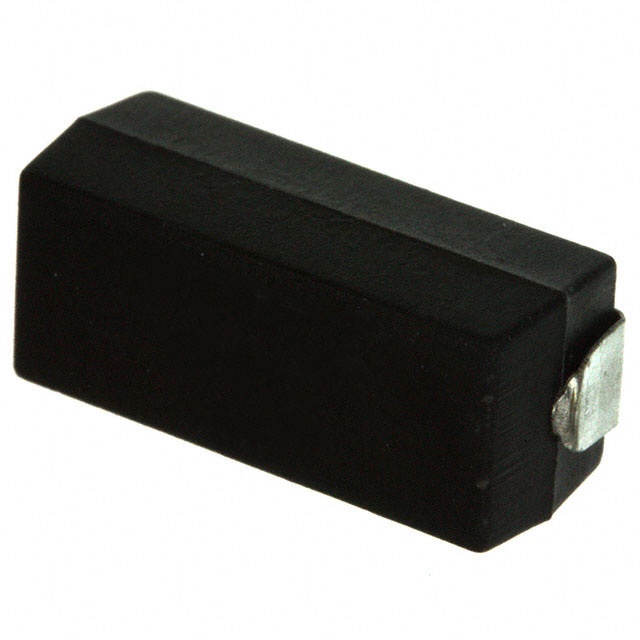

S3-0R2J8
ActiveRiedon products by Bourns
RES 0.2 OHM 5% 3W 6327
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S3-0R2J8 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding |
| Height - Seated (Max) [Max] [z] | 6.8 mm |
| Height - Seated (Max) [Max] [z] | 0.268 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 275 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6327 J-Lead |
| Power (Watts) | 3 W |
| Resistance | 200 mOhms |
| Size / Dimension [x] | 15.9 mm |
| Size / Dimension [x] | 0.626 in |
| Size / Dimension [y] | 6.9 mm |
| Size / Dimension [y] | 0.272 " |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 0.96 | |
Description
General part information
S3-0R2J8
200 mOhms ±5% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
