EM2-25C
ActiveSAB North America

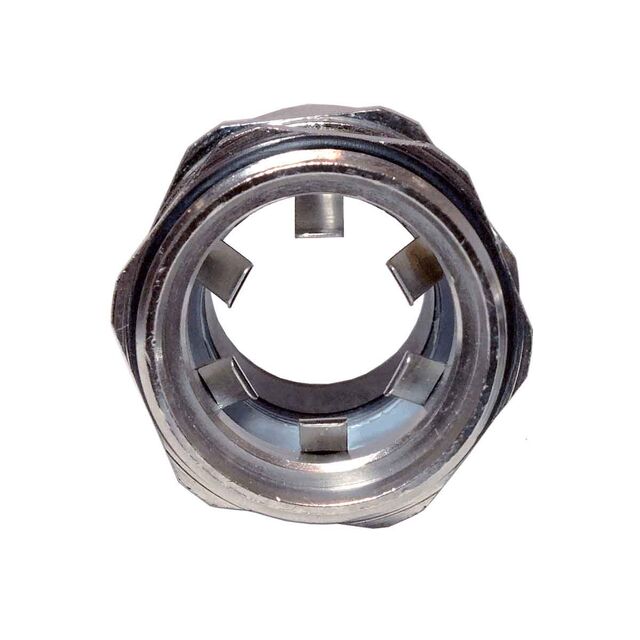

CABLE GLAND 13-18MM M25 BRASS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM2-25C
ActiveSAB North America
CABLE GLAND 13-18MM M25 BRASS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM2-25C |
|---|---|
| Color | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material | Brass, Nickel Plated |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.709 in |
| Outside Cable Diameter (Max) [Max] [diameter] | 18.01 mm |
| Outside Cable Diameter (Min) | 13 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.512 in |
| Panel Hole Size | 0.984 in |
| Panel Hole Size | 25 mm |
| Thread Length | 8 mm |
| Thread Length | 0.315 in |
| Thread Size | M25x1.5 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EM2-25C
Cable Gland Brass, Nickel Plated M25x1.5 Silver
