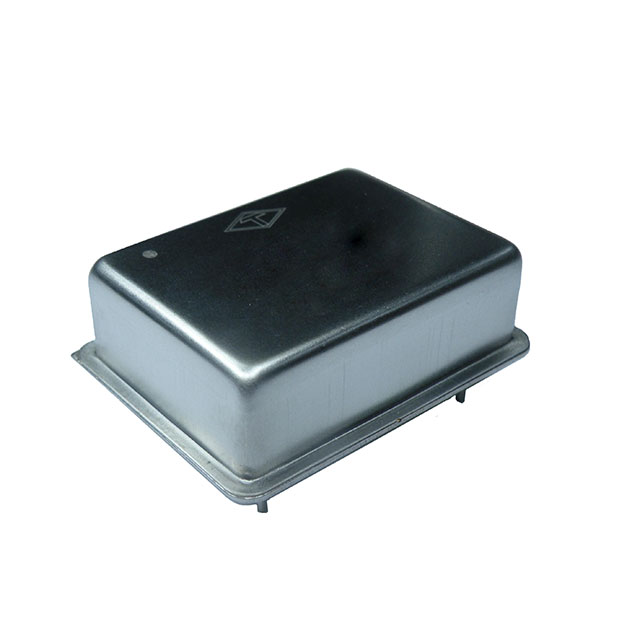

NI-10M-2553
ActiveTaitien
XTAL OSC OCXO 10.0000MHZ SNWV TH
Deep-Dive with AI
Search across all available documentation for this part.
NI-10M-2553
ActiveTaitien
XTAL OSC OCXO 10.0000MHZ SNWV TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NI-10M-2553 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 800 mA |
| Frequency | 10 MHz |
| Frequency Stability | 3 ppb |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Sine Wave |
| Package / Case | 5 Leads |
| Package / Case | 6-DIP |
| Package / Case [custom] | 25.4 mm |
| Package / Case [custom] | 1 in |
| Size / Dimension | 27.18 mm, 36.32 mm |
| Size / Dimension | 1.07 ", 1.43 " |
| Type | OCXO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 92.93 | |
Description
General part information
NI-10M-2553
10 MHz OCXO Sine Wave Oscillator 5V 6-DIP (1.000", 25.40mm), 5 Leads
