DM3600U/00/S1
ActiveStatus Instruments Ltd
DIGITAL PANEL METER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DM3600U/00/S1
ActiveStatus Instruments Ltd
DIGITAL PANEL METER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DM3600U/00/S1 |
|---|---|
| Display Characters - Height [z] | 0.591 in |
| Display Characters - Height [z] | 15 mm |
| Display Type | LED - Red Characters |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range [Max] | 20 mA, 10 V, 1820 °C |
| Measuring Range [Min] | -210 °C, -20 mA, -10 V |
| Measuring Type | RTD, Thermocouple, Process |
| Number of Characters Per Row | 6 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | Relay (2) |
| Panel Cutout Dimensions [x] | 92 mm |
| Panel Cutout Dimensions [y] | 45 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Meter, Process |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 9 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 292.50 | |
Description
General part information

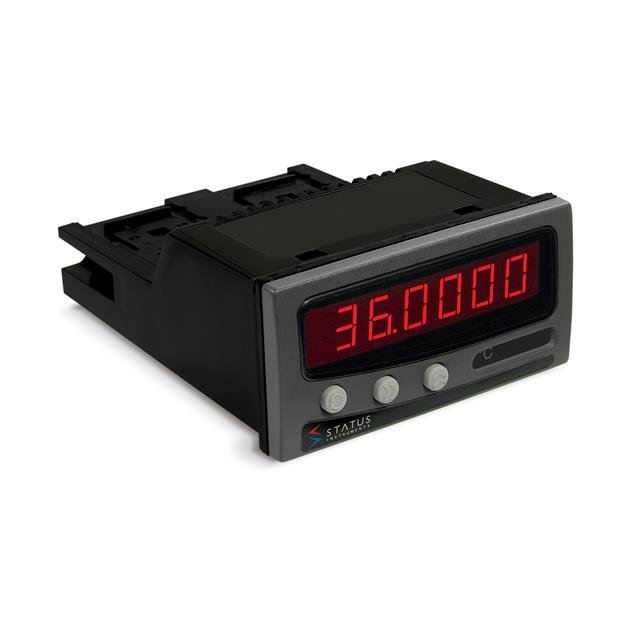

DM3600U/00/S1
Process, Temperature Meter LED - Red Characters Display Panel Mount
