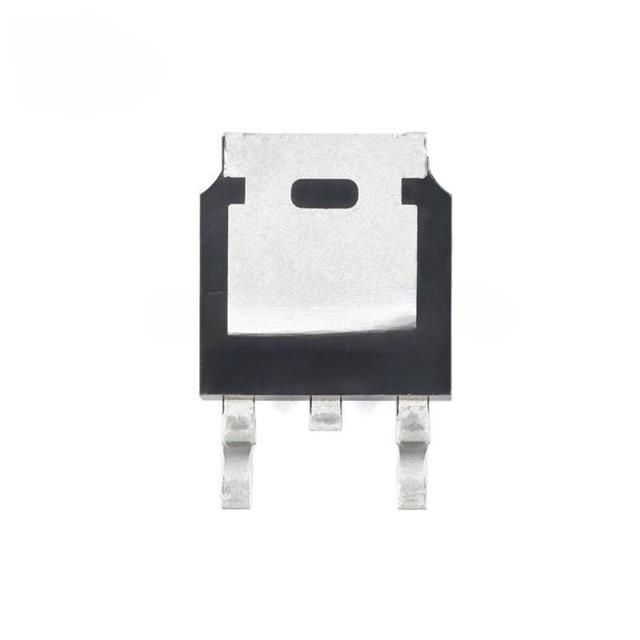

78M08
ActiveUMW
80DB@(120HZ) 2V@(500MA) FIXED 8V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78M08
ActiveUMW
80DB@(120HZ) 2V@(500MA) FIXED 8V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78M08 |
|---|---|
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 6 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| PSRR | 80 dB |
| Supplier Device Package | TO-252 (DPAK) |
| Voltage - Input (Max) [Max] [custom] | 35 V |
| Voltage - Output (Min/Fixed) | 8 V |
| Voltage Dropout (Max) [Max] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.44 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.55 | ||
| 10 | $ 0.47 | |||
| 25 | $ 0.44 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 2500 | $ 0.20 | ||
| 5000 | $ 0.18 | |||
| 12500 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
| 62500 | $ 0.16 | |||
Description
General part information
78M08
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252 (DPAK)
