B-0480SB1540-0100XF
ActiveOrbel Corporation

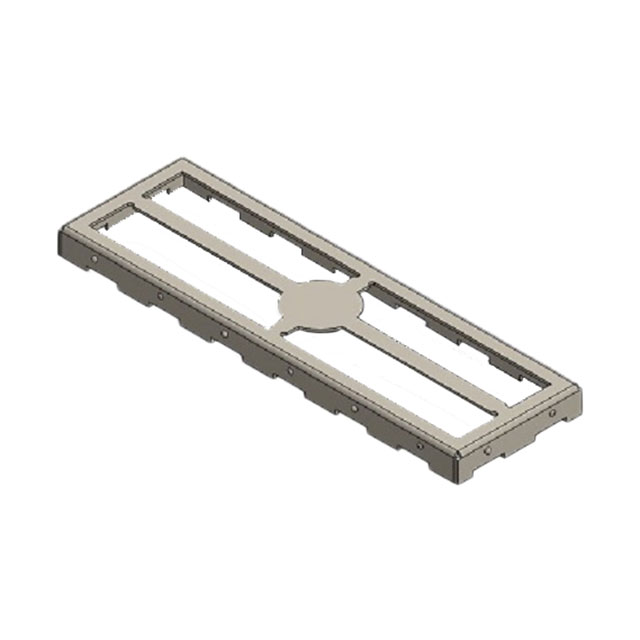

RF SHIELD 0.480" X 1.540" FRAME
Deep-Dive with AI
Search across all available documentation for this part.
B-0480SB1540-0100XF
ActiveOrbel Corporation
RF SHIELD 0.480" X 1.540" FRAME
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B-0480SB1540-0100XF |
|---|---|
| Height - Overall [z] | 0.1 in |
| Height - Overall [z] | 2.54 mm |
| Length - Overall [x] | 39.12 mm |
| Length - Overall [x] | 1.54 in |
| Mounting Type | Surface Mount |
| Type | Shield, 2-Piece |
| Ventilation | Non-Vented |
| Width - Overall [y] | 12.19 mm |
| Width - Overall [y] | 0.48 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.73 | |
| 10 | $ 8.32 | |||
| 25 | $ 7.45 | |||
| 100 | $ 6.51 | |||
Description
General part information
B-0480SB1540-0100XF
RF Shield Shield, 2-Piece 0.480" (12.19mm) X 1.540" (39.12mm) Non-Vented Surface Mount
Documents
Technical documentation and resources
