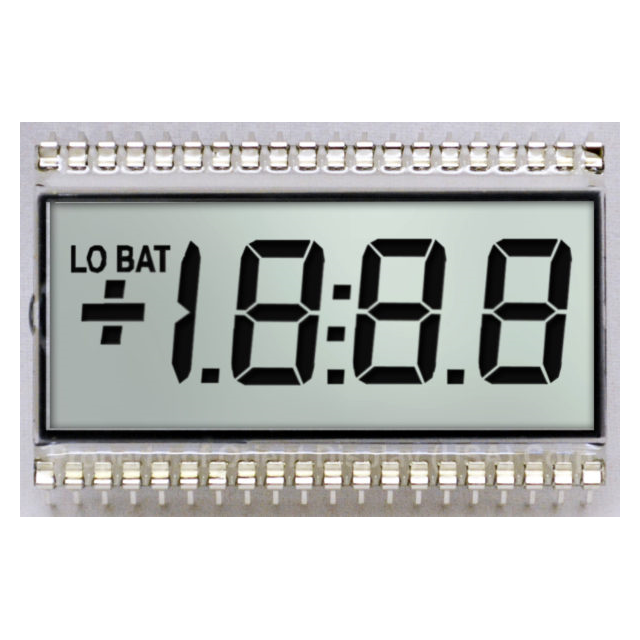

OD-358R
ActiveOrient Display
LCD GLASS MOD 3.5DIG TN+ REFL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OD-358R
ActiveOrient Display
LCD GLASS MOD 3.5DIG TN+ REFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OD-358R |
|---|---|
| Background Color | Gray |
| Character Format | 7-Segment |
| Character Size [y] | 7 mm |
| Character Size [z] | 12.7 mm |
| Display Format [x] | 3.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 3.5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 30.48 mm |
| Outline L x W x H [z] | 2.8 mm |
| Text Color | Black |
| Viewing Area [x] | 45.8 mm |
| Viewing Area [y] | 17.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.85 | |
| 10 | $ 6.75 | |||
| 100 | $ 5.53 | |||
| 500 | $ 5.00 | |||
| 1000 | $ 4.82 | |||
| 2000 | $ 4.68 | |||
Description
General part information
OD-358R
Character Display Module Reflective 7-Segment TN - Twisted Nematic 50.80mm x 30.48mm x 2.80mm
